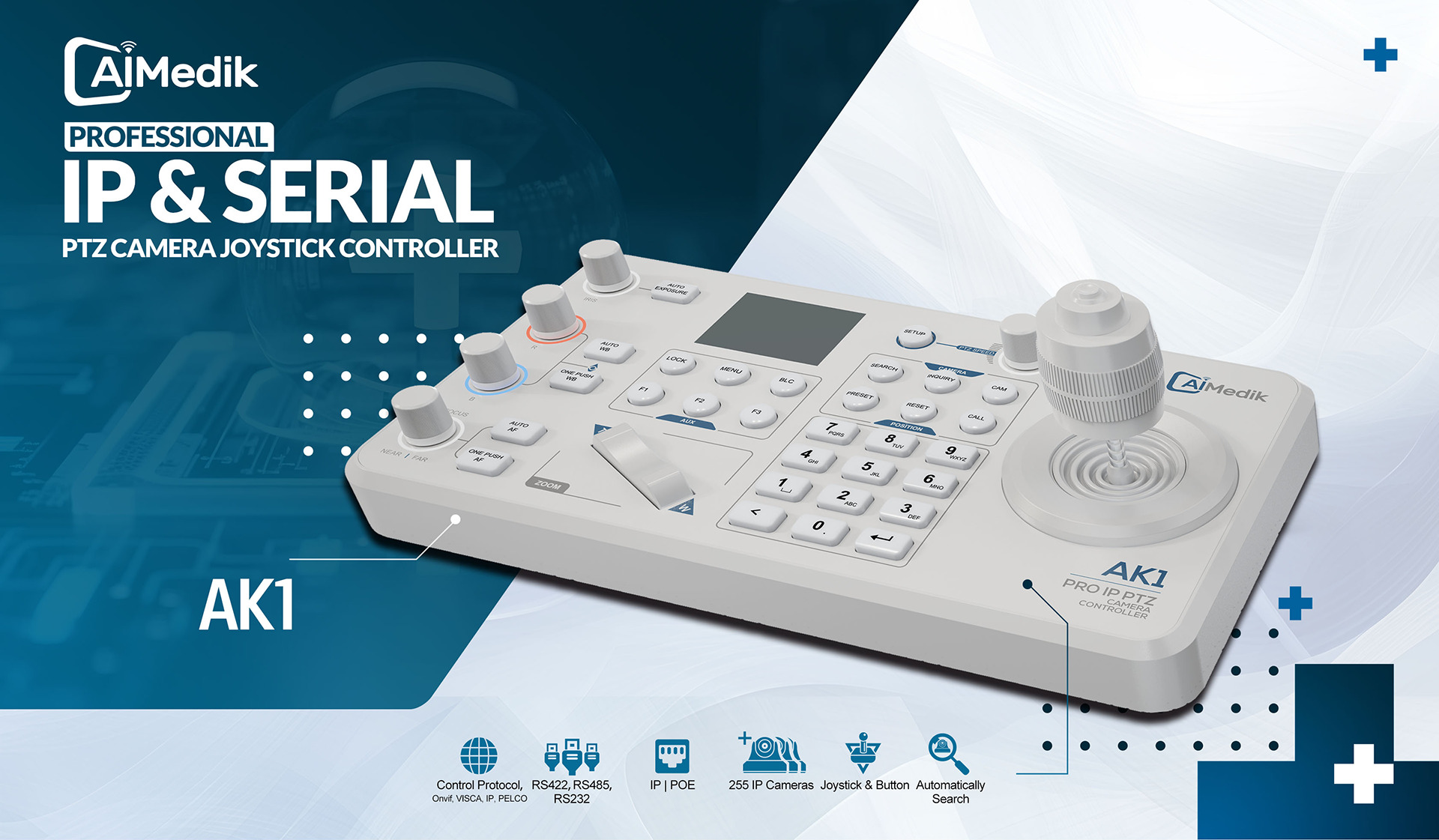

PTZ Camera Controller—AK1

The controller offers the ability to control iris, focus, white balance,exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.

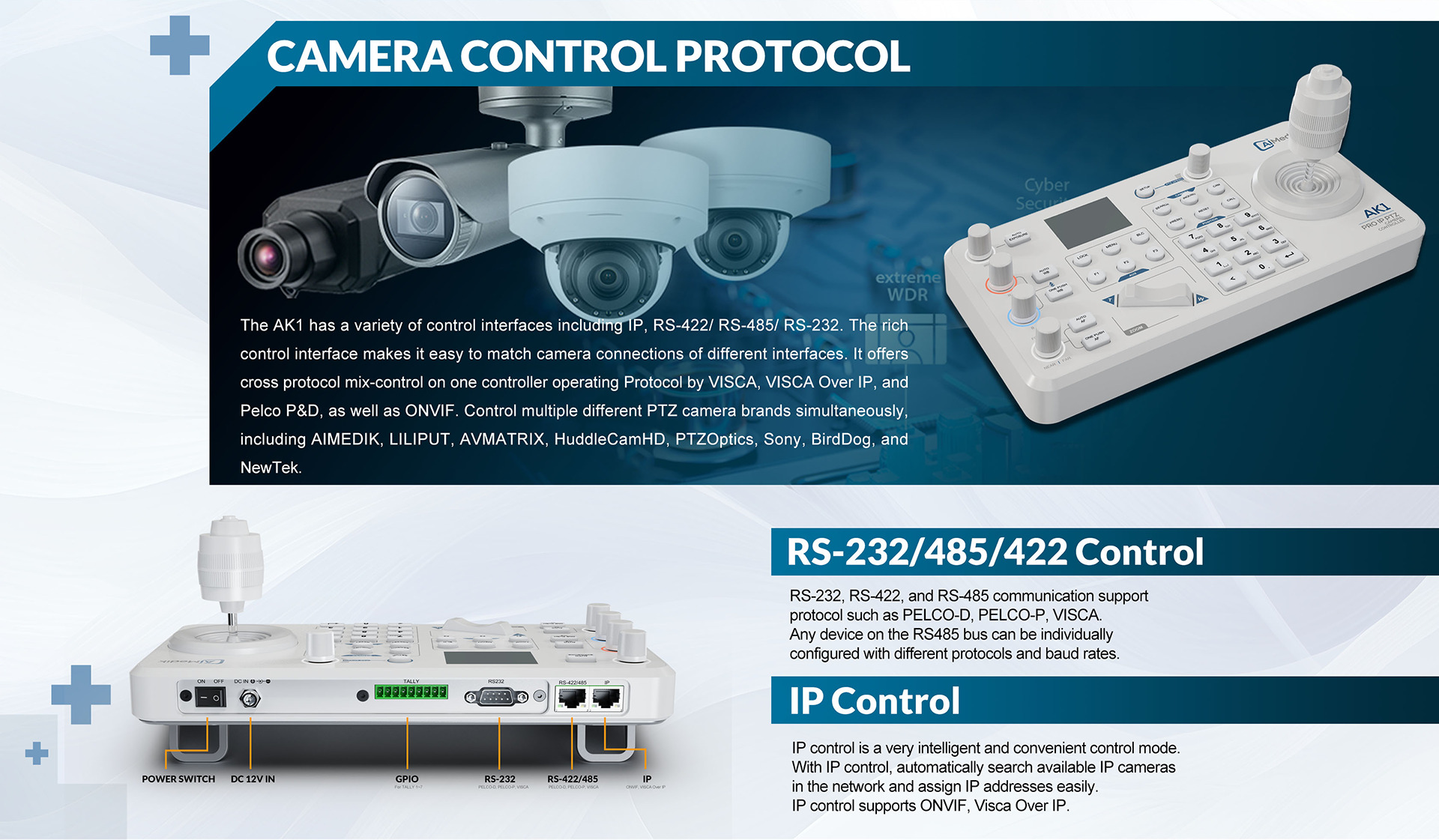

–Cross protocol mix-control with IP/ RS-422/ RS-485/ RS-232

–Control protocol by VISCA, VISCA-Over-IP, Onvif and Pelco P&D

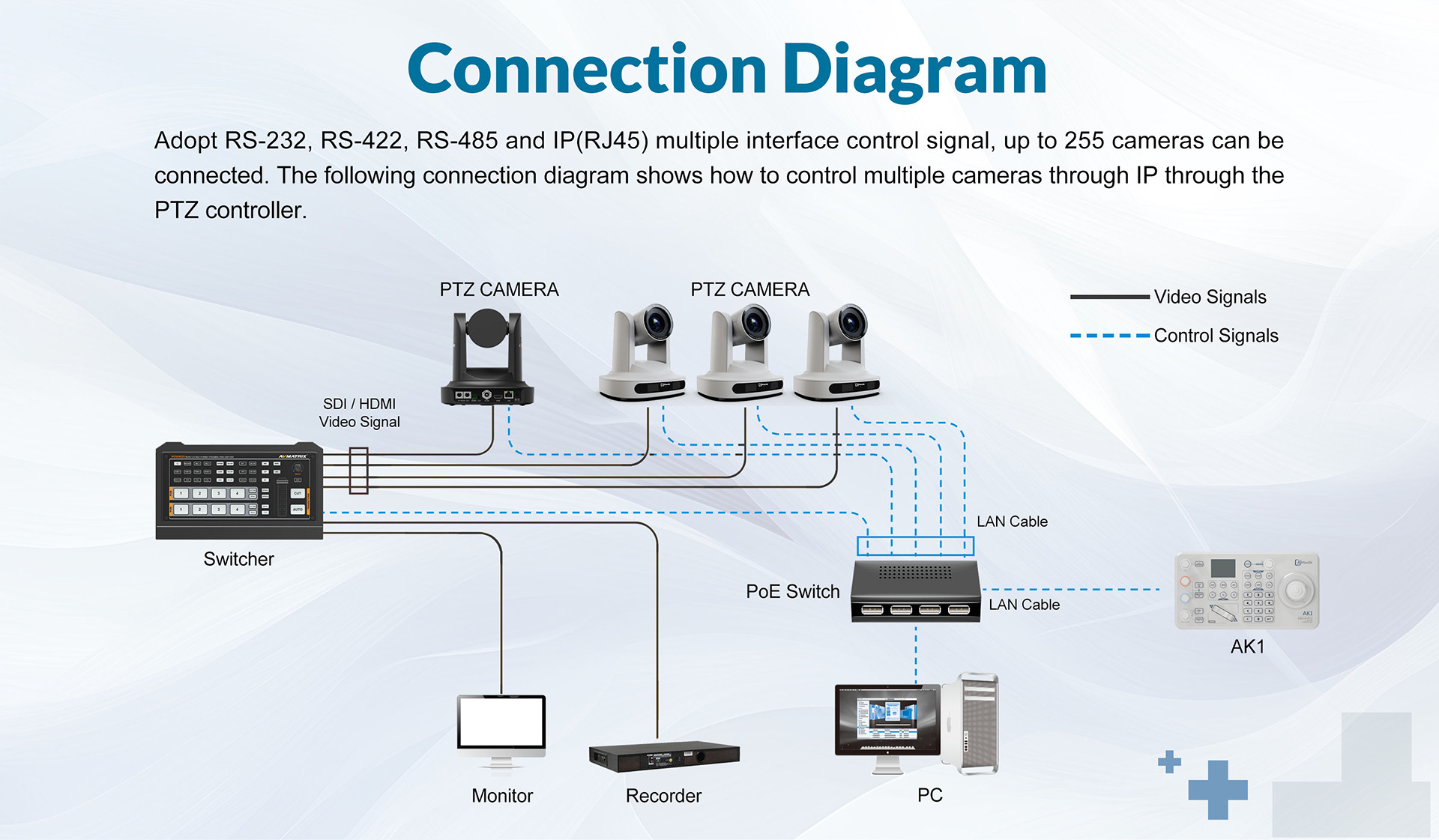

–Control up to total of 255 IP cameras on a single network

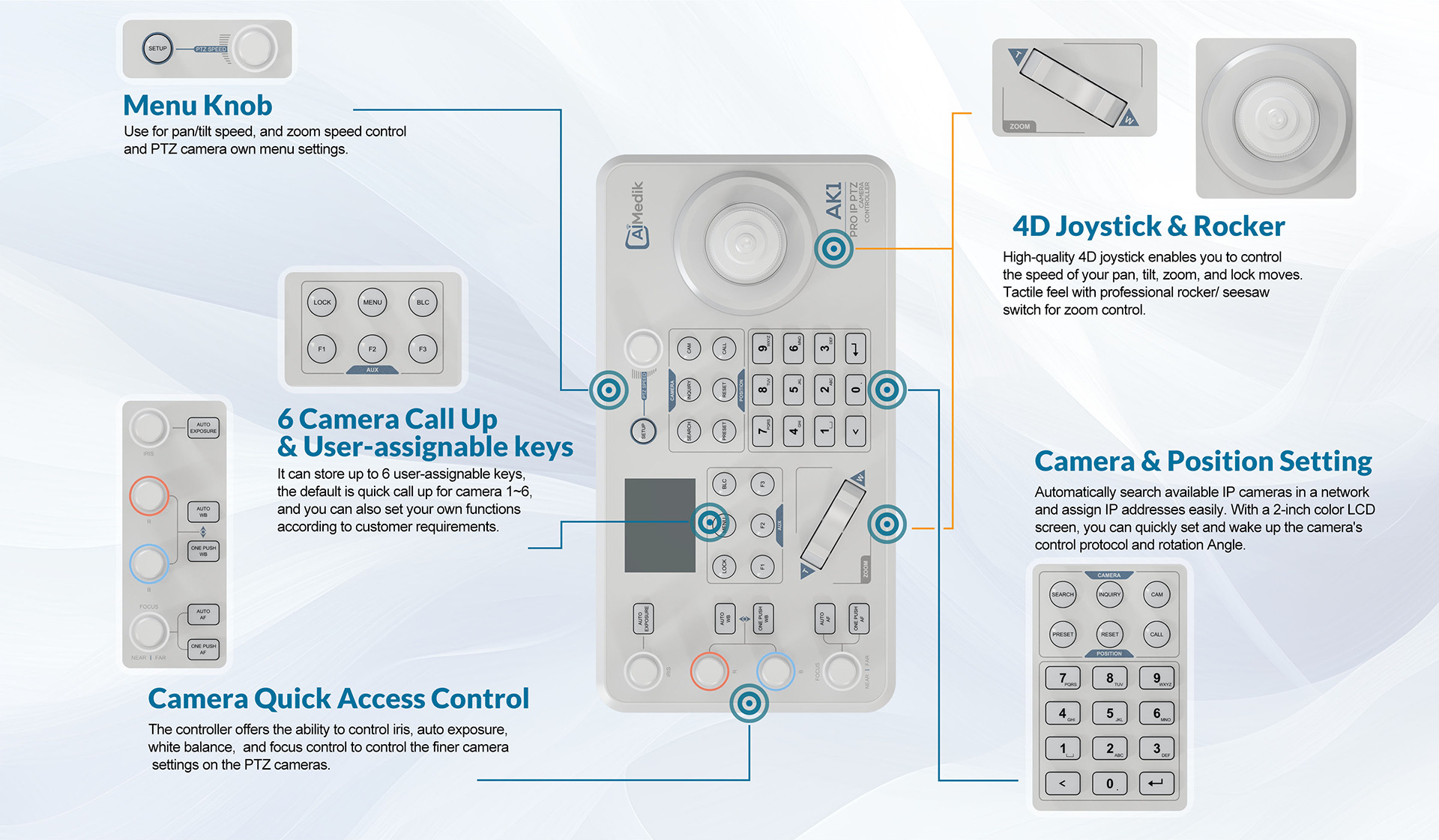

–3 camera quick call up keys, or 3 user-assignable keys to quickly invoke shortcut functions

–Quick control of exposure, shutter speed, iris, compensation, white balance, focus, pan/tilt speed, zoom speed

–Tactile feel with professional rocker/seesaw switch for zoom control

–Automatically search available IP cameras in a network and assign IP addresses easily

–Multi-color key illumination indicator directs operation to specific functions

–Tally GPIO output for indicating the camera be currently controlled

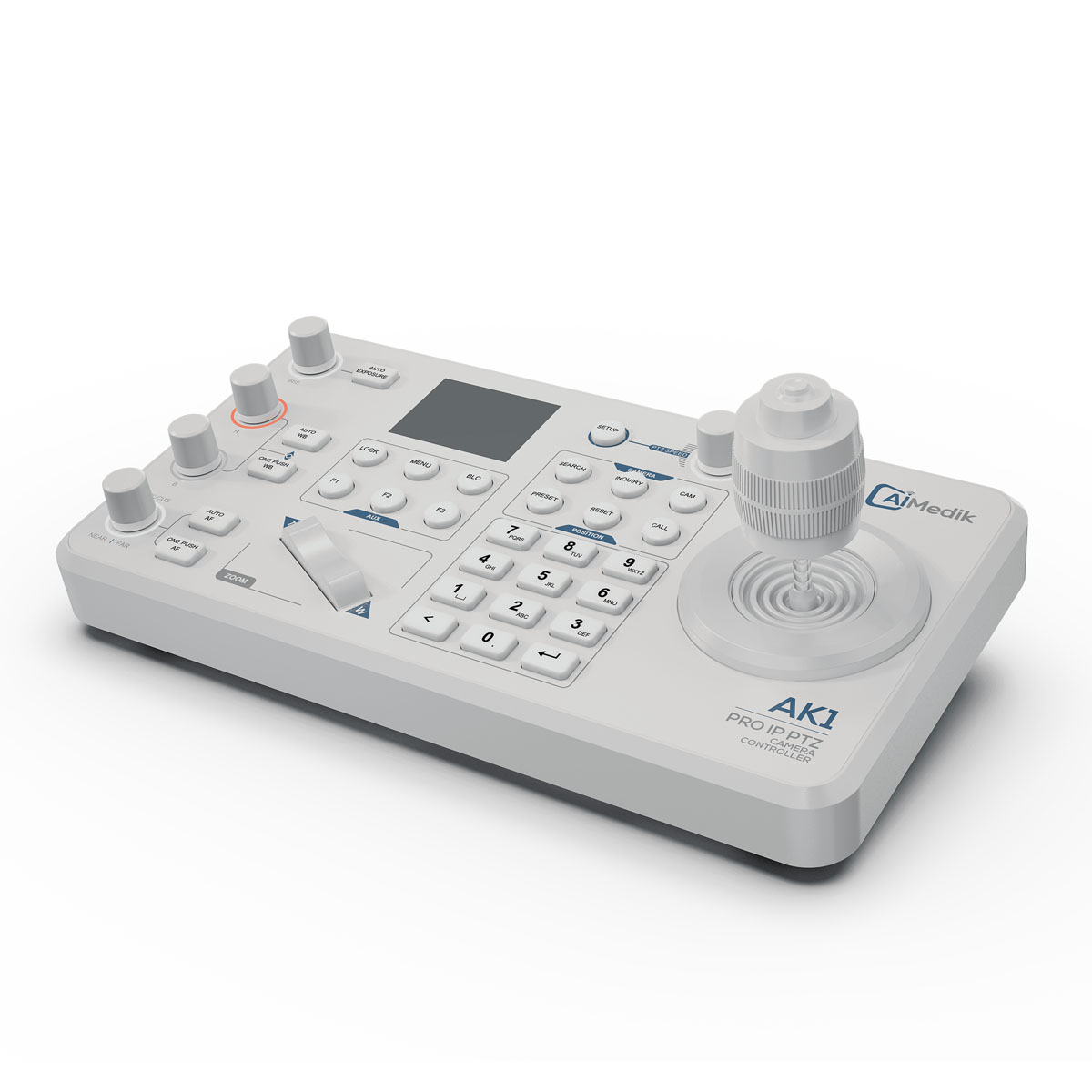

–Metal housing with 2.2 inch LCD display, joystick, 5 rotation button

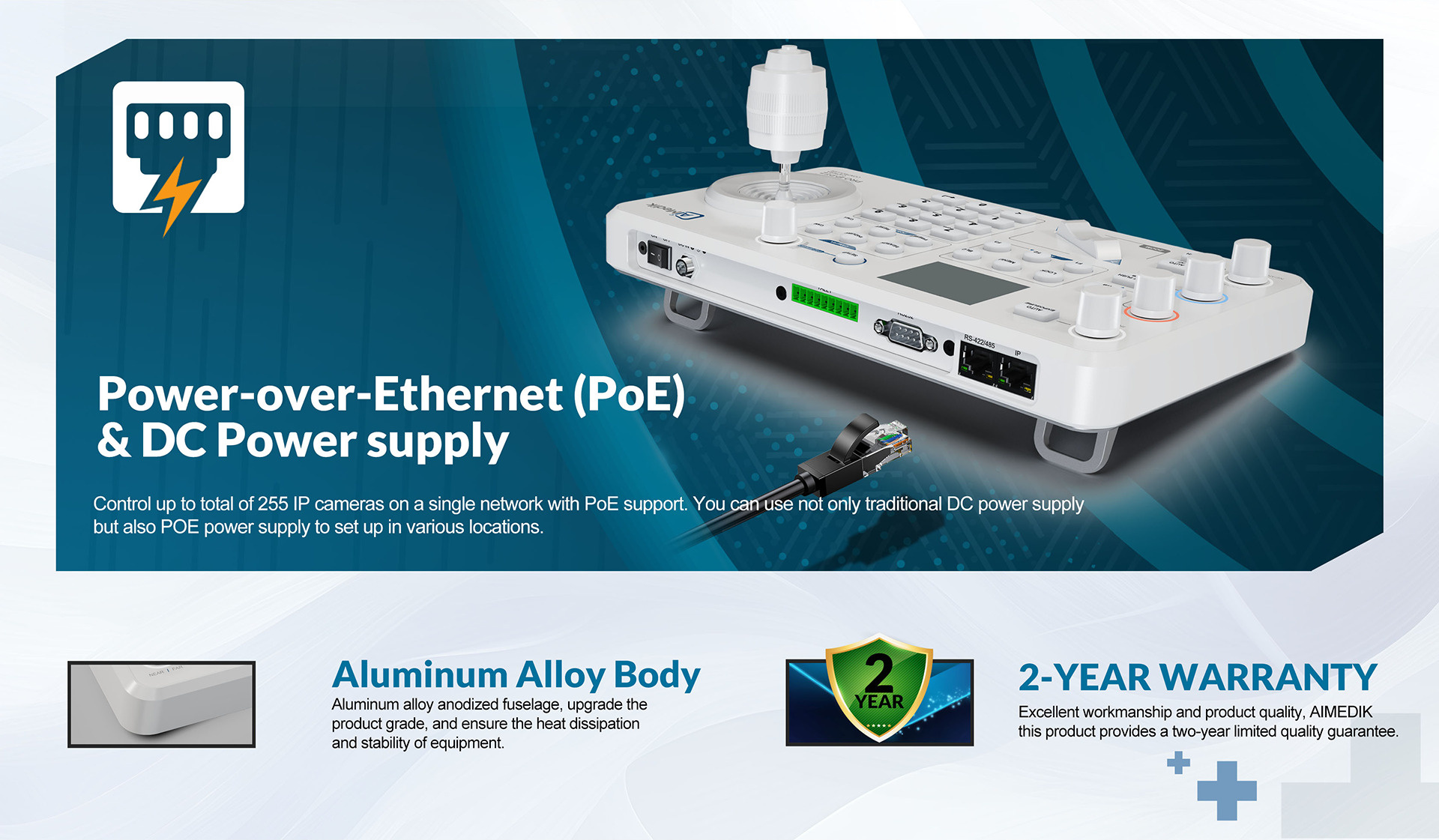

–Supports both POE and 12V DC power supplies
