SYSTEM | Processor | Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz |
Graphic | Adreno 506 | |
RAM | 2 GB LPDDR3 (default)/ 4GB (optional) | |
ROM | 16 GB eMMC (default) / 64GB (optional) | |
OS | Android 9.0 | |
Video | 1080p@30fps,1080p@60fps | |
Audio | Supports MP3,WAV,WMA9/Pro,OGG,FLAC,AMR-NB/-WB | |
DISPLAY | LCD panel | 15.6",IPS |
Resolutions | 1920(H)x1080(V) | |
Brightness | 250cd/㎡ | |
Contrast Ratio | 800:1 | |
View Angle (°) | 85/85(L/R),85/85(U/D) | |
Touch Panel | Sensitive 10-point capacitive touch screen | |
FUNCTION | WiFi | IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz |
Bluetooth | Bluetooth 4.2 | |
3G/4G | Support (optional) | |
RFID | Combo smart card reader & Mifare RFID (optional) | |
Camera | 16 MP CMOS front camera | |
Handset | Full-function handset with remote control (optional) | |
Speaker | 4Ω/2W | |
Sensor | Light Sensor | |
Function Key | Home,Return,Channel-,Channel+,Backlight,Vol- ,Vol+,Brightness,Lamp | |
USER INTERFACE
| I/O Ports | Earphone Jack x 2 |
IC / ID Card Slot x 1 | ||
USB HOST 2.0 x 2 | ||
TYPE-C x 1 | ||
Micro SD Card Slot x 1 | ||
Nano SIM Card Slot x 1 | ||
RJ45 100M x 1 (POE/POE+ is optional) | ||
RS232 x 1 | ||
Microphone x 1 | ||
OTHER | DC In | 12V DC |
Power Consumption | ≤17W | |
Operating Temp. | 0°C to +50°C | |
Storage Temp. | -20°C to +60°C | |
Dimensions(LWD) | 399.7 x 268.3 x 39 mm | |
Weight | 1.77kg (without handset);2.23kg (with handset) | |

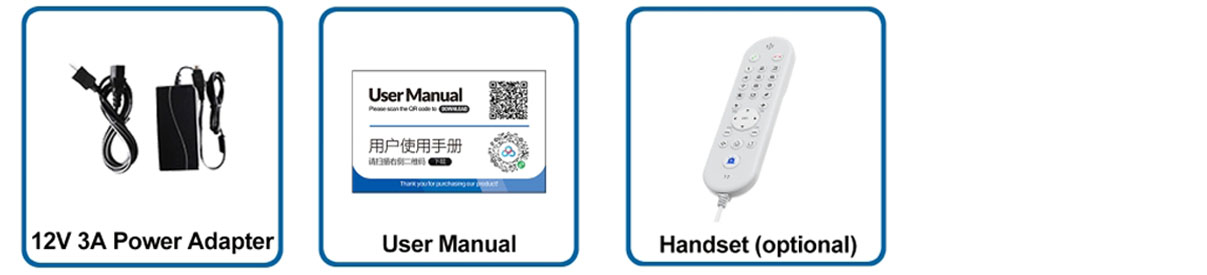

ACCESSORIES | Standard | Power Adaptor |
Optional | Handset | |
CERTIFICATION | IEC 60601-1,EN 60601-1,CE,FCC | |

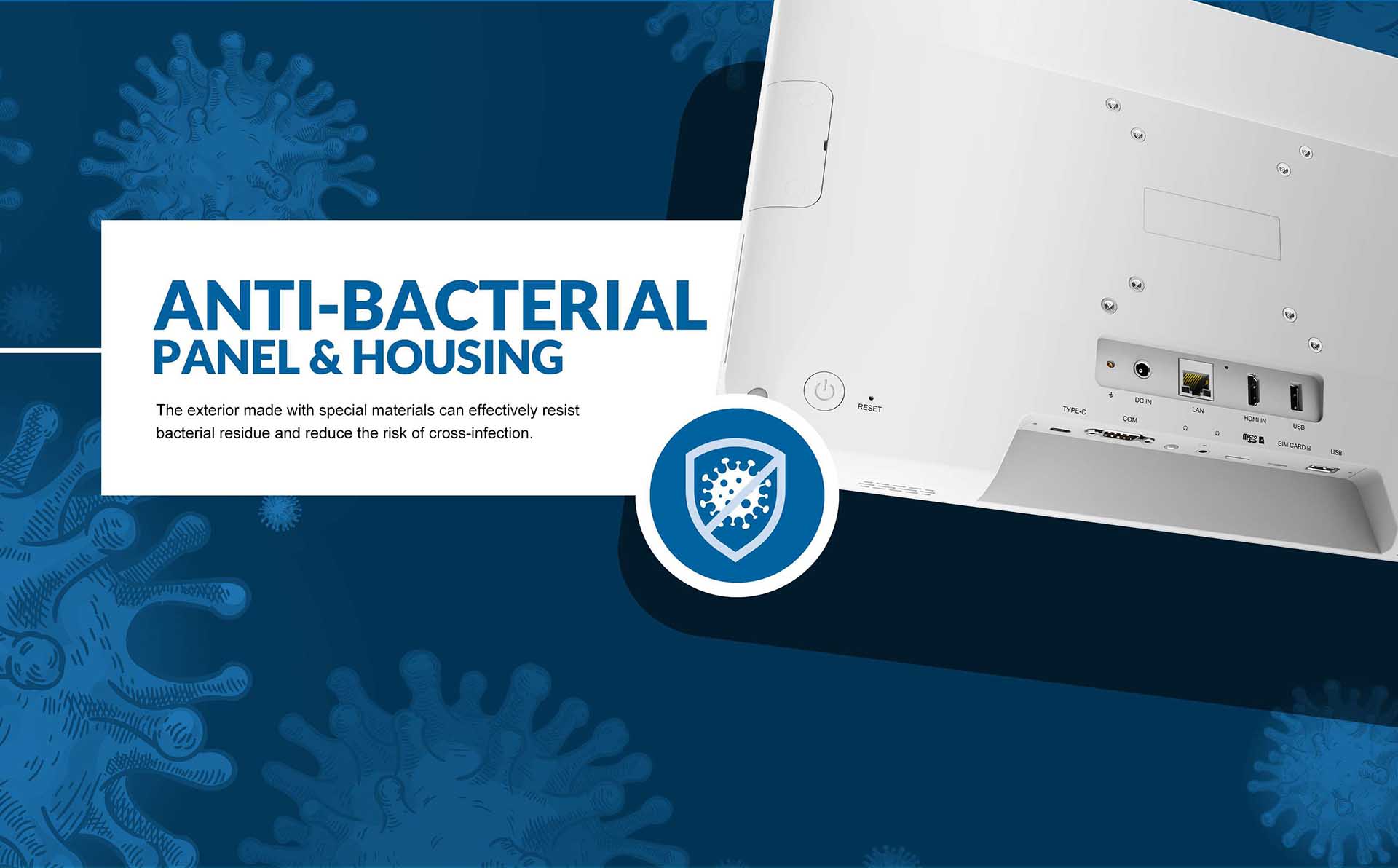

ISO 22196 |
